Smart Rollups

Smart Rollups play a crucial part in providing high scalability on Tezos. They handle logic in a separate environment that can run transactions at a much higher rate and can use larger amounts of data than the main Tezos network.

The transactions and logic that Smart Rollups run is called layer 2 to differentiate it from the main network, which is called layer 1.

Anyone can run a node based on a Smart Rollup to execute its code and verify that other nodes are running it correctly, just like anyone can run nodes, bakers, and accusers on layer 1. This code, called the kernel, runs in a deterministic manner and according to a given semantics, which guarantees that results are reproducible by any rollup node with the same kernel. The semantics is precisely defined by a reference virtual machine called a proof-generating virtual machine (PVM), able to generate a proof that executing a program in a given context results in a given state. During normal execution, the Smart Rollup can use any virtual machine that is compatible with the PVM semantics, which allows the Smart Rollup to be more efficient.

Using the PVM and optionally a compatible VM guarantees that if a divergence in results is found, it can be tracked down to a single elementary step that was not executed correctly by some node. In this way, multiple nodes can run the same rollup and each node can verify the state of the rollup.

For a tutorial on Smart Rollups, see Deploy a Smart Rollup.

For reference on Smart Rollups, see Smart Optimistic Rollups in the Octez documentation.

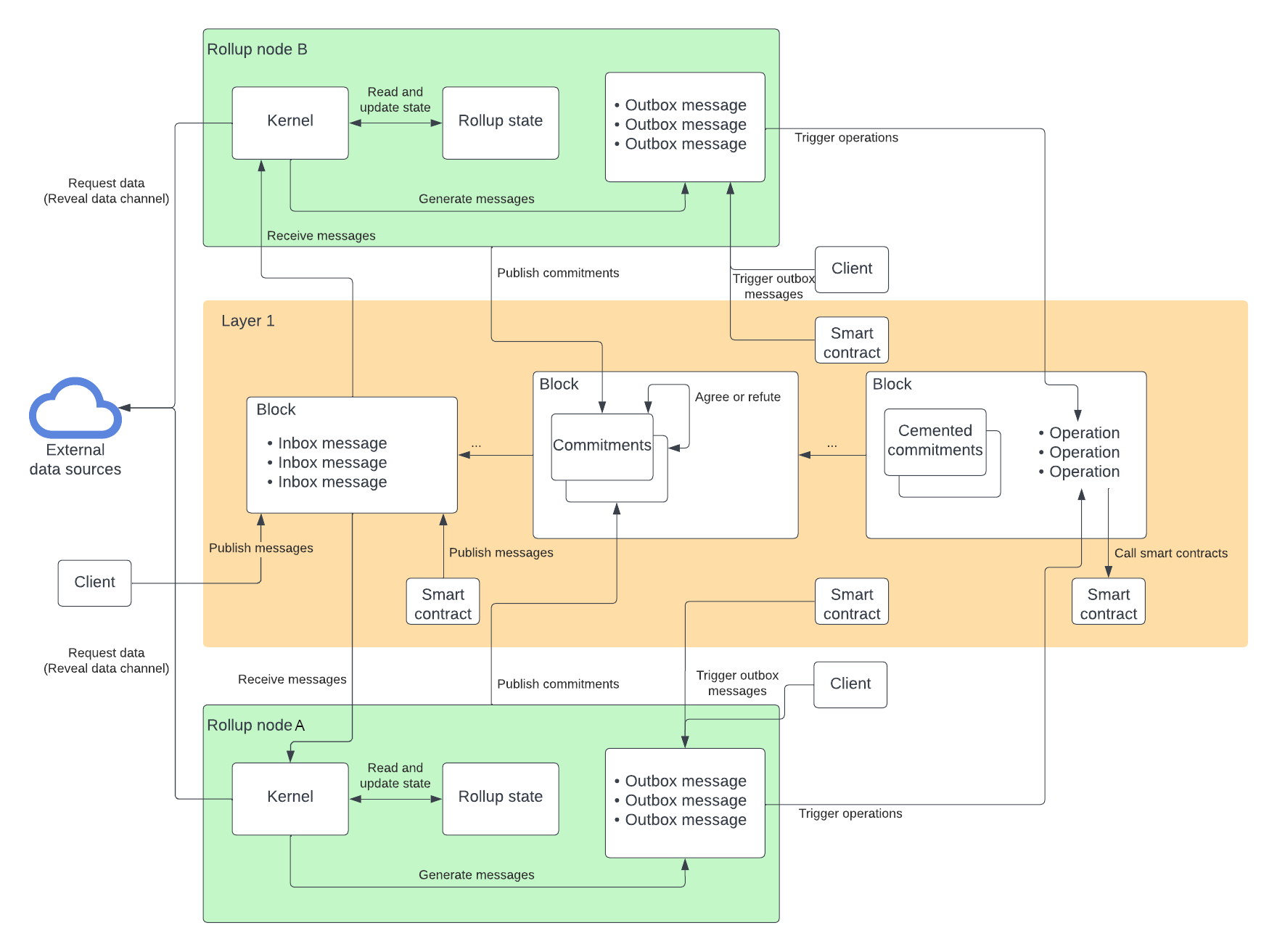

This diagram shows a high-level view of how Smart Rollups interact with layer 1:

Diagram of Smart Rollup architecture

Smart Rollup lifecycle

The general flow of a Smart Rollup goes through these phases:

  1. Origination: A user originates the Smart Rollup to layer 1.
  2. One or more users start Smart Rollup nodes.
  3. Commitment periods: The Smart Rollup nodes receive the messages in the Smart Rollup inbox, run processing based on those messages, generate but do not run outbox messages, and publish a hash of their state at the end of the period, called a commitment.
  4. Refutation periods: Nodes can publish a concurrent commitment to refute a published commitment.
  5. Triggering outbox messages: When the commitment can no longer be refuted, any client can trigger outbox messages, which create transactions.

Here is more information on each of these phases:


Like smart contracts, users deploy Smart Rollups to layer 1 in a process called origination.

The origination process stores data about the rollup on layer 1, including:

  • An address for the rollup, which starts with sr1
  • The type of proof-generating virtual machine (PVM) for the rollup, which defines the execution engine of the rollup kernel; currently only the wasm_2_0_0 PVM is supported
  • The installer kernel, which is a WebAssembly program that allows nodes to download and install the complete rollup kernel
  • The Michelson data type of the messages it receives from layer 1
  • The genesis commitment that forms the basis for commitments that rollups nodes publish in the future

After it is originated, anyone can run a Smart Rollup node based on this information.

Commitment periods

Starting from the rollup origination level, levels are partitioned into commitment periods of 60 consecutive layer 1 blocks. During each commitment period, each rollup node receives the messages in the rollup inbox, processes them, and updates its state.

Because Smart Rollup nodes behave in a deterministic manner, their states should all be the same if they have processed the same inbox messages with the same kernel starting from the same origination level. This state is referred to as the "state of the rollup."

At the end of a commitment period, the next commitment period starts.

Any time after each commitment period, at least one rollup node must publish a hash of its state to layer 1, which is called its commitment. Each commitment builds on the previous commitment, and so on, back to the genesis commitment from when the Smart Rollup was originated.

Nodes must stake 10,000 tez along with their commitments. When nodes make identical commitments, their stakes are combined into a single stake for the commitment.

Refutation periods

Because the PVM is deterministic and all of the inputs are the same for all nodes, any honest node that runs the same Smart Rollup produces the same commitment. As long as nodes publish matching commitments, they continue running normally.

When the first commitment for a past commitment period is published, a refutation period starts, during which any rollup node can publish its own commitment for the same commitment period, especially if it did not achieve the same state. During the refutation period for a commitment period, if two or more nodes publish different commitments, two of them play a refutation game to identify the correct commitment. The nodes automatically play the refutation game by stepping through their logic using the PVM to identify the point at which they differ. At this point, the PVM is used to identify the correct commitment, if any.

Each refutation game has one of two results:

  • Neither commitment is correct. In this case, the protocol burns both commitments' stakes and eliminates both commitments.

  • One commitment is correct and the other is not. In this case, the protocol eliminates the incorrect commitment, burns half of the incorrect commitment's stake, and gives the other half to the correct commitment's stake.

This refutation game happens as many times as is necessary to eliminate incorrect commitments. Because the node that ran the PVM correctly is guaranteed to win the refutation game, a single honest node is enough to ensure that the Smart Rollup is running correctly. This kind of Smart Rollup is called a Smart Optimistic Rollup because the commitments are assumed to be correct until they are proven wrong by an honest rollup node.

When there is only one commitment left, either because all nodes published identical commitments during the whole refutation period or because this commitment won the refutation games and eliminated all other commitments, then this correct commitment can be cemented by a dedicated layer 1 operation and becomes final and unchangeable. The commitments for the next commitment period build on the last cemented commitment.

The refutation period lasts 2 weeks on Mainnet; it can be different on other networks.

Triggering outbox messages

Smart Rollups can generate transactions to run on layer 1, but those transactions do not run immediately. When a commitment includes layer 1 transactions, these transactions go into the Smart Rollup outbox and wait for the commitment to be cemented.

After the commitment is cemented, clients can trigger transactions in the outbox with the Octez client execute outbox message command. When they trigger a transaction, it runs like any other call to a smart contract. For more information, see Triggering the execution of an outbox message in the Octez documentation.


For examples of Smart Rollups, see this repository:
